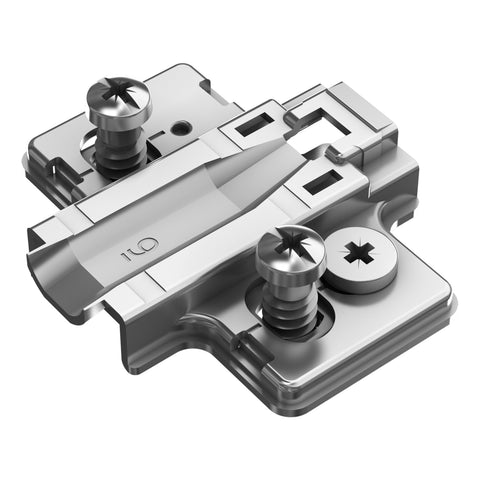

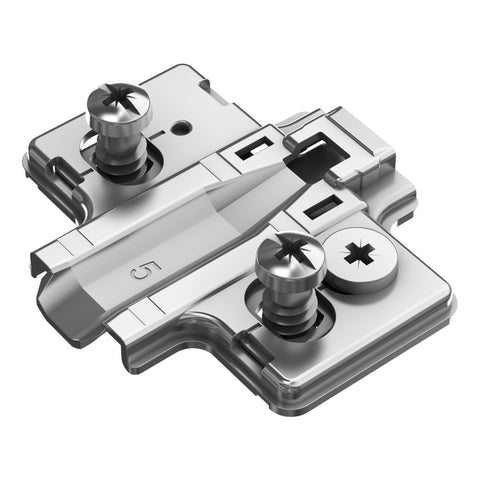

KVSHB MP/MPA Series Master and KV Hinge Mounting Plate

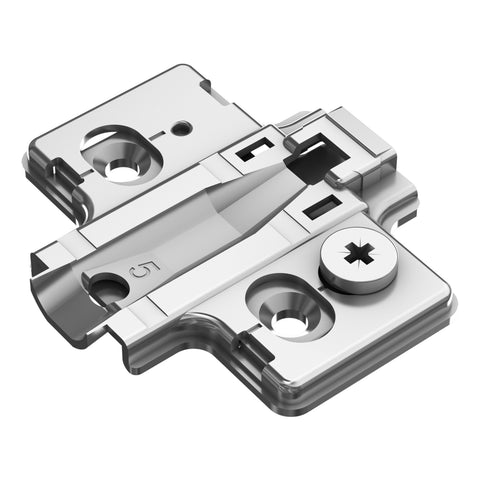

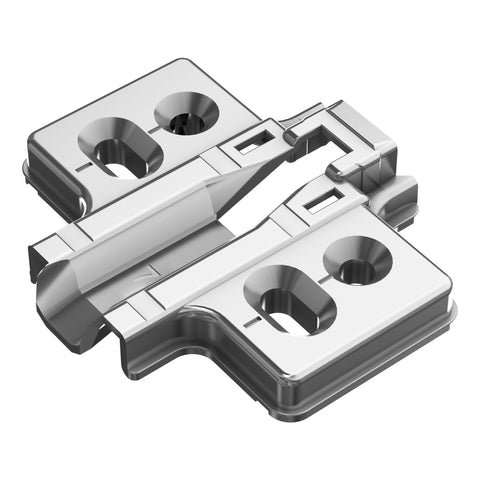

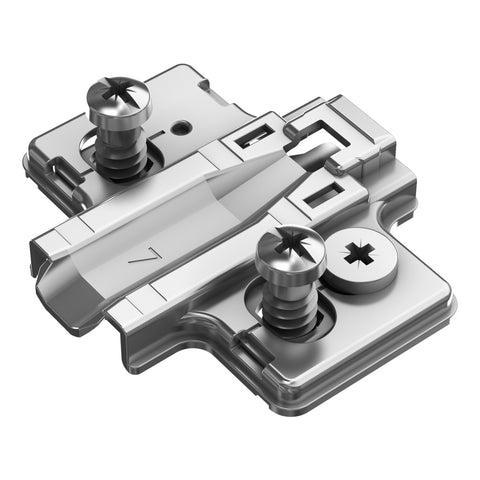

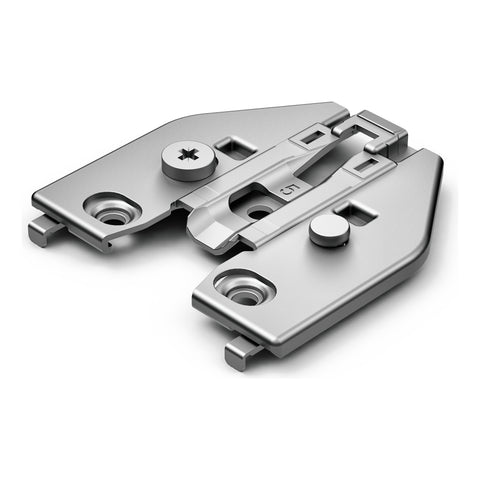

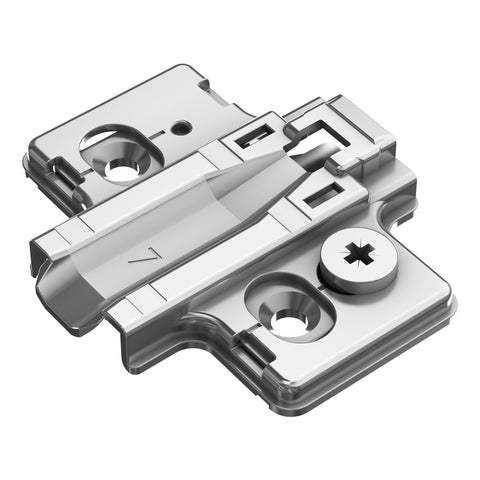

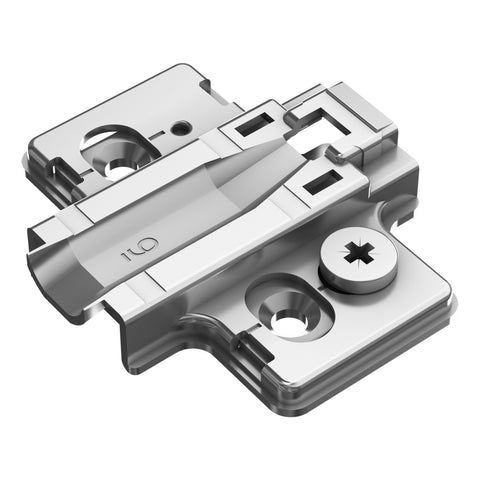

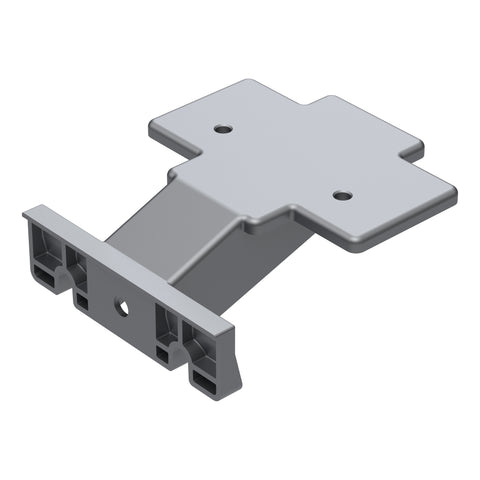

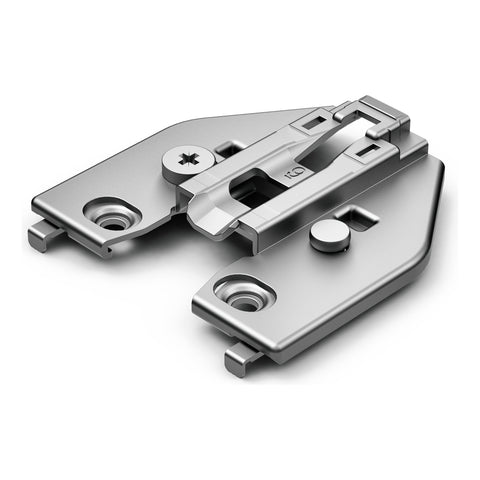

The KVSHB MP and MPA mounting plates connect compatible concealed hinges to the cabinet and establish the required mounting height. The assortment includes adjustable plates, a four-hole Euro screw plate and face frame adapters. Select the plate type, height and fastener configuration for the hinge and cabinet construction; compatibility varies by part.
Document Downloads
Specs
| Plate Type | 4-Hole Mounting Plate, Adjustable, Adjustable Inset Face Frame Adapter, Face Frame Adapter, Adjustable Face Frame Adapter |
| Configuration | 7mm, 5mm, 9mm, Inset adapter |
| Fastener | PM Euro Screw 6.3x14mm, Woodscrew, 5mm x 7.5mm Exp. Dowel, 5mm x 11.5mm Exp. Dowel |
| Family | KVSHB MP/MPA Series |
| Brand | KV Powered by Samet |
