Load Capacity & Structure
Slide capacity, load distribution, drawer width, mounting, cabinet structure, and deflection should be reviewed together.
OEM SOLUTIONS

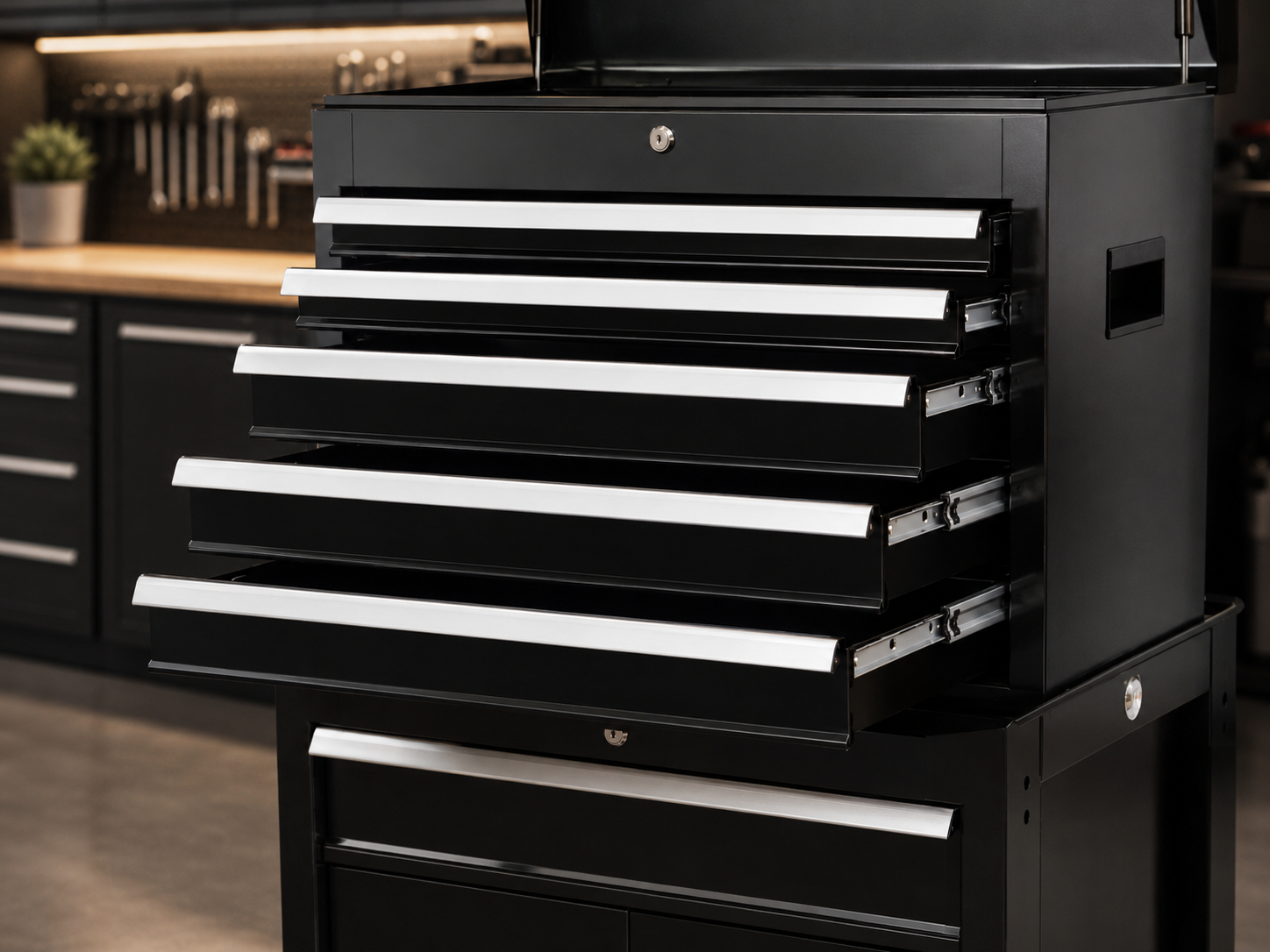

Tool Storage
Strength, Safety, and Dependable Access
Heavy-Duty Solutions for Demanding Environments
Tool storage lives in demanding environments. Drawers and access systems must support substantial loads, frequent use, and smooth operation while helping users keep tools secure, organized, and accessible.
KV works with tool-storage and industrial-equipment manufacturers to develop slide solutions around load capacity, locking, extension, drawer dimensions, mounting configuration, mobility, and durability requirements.
WHAT MATTERS MOST
Design Priorities
Heavy-duty storage requires slide capacity, drawer structure, extension, locking, impact durability, mobile conditions, and long-term cycle performance to work as a system.
Full Extension & Reach
Full extension or overtravel can provide complete access to deep, wide, or equipment-heavy storage.
Locking & Retention
Lock-in, lock-out, hold-in, and other retention functions help control drawers in stationary and mobile environments.
Wide & Deep Drawer Geometry
Long slides and wide drawers can introduce structural and deflection requirements beyond nominal load capacity.
Mobile Vibration & Shock
Service vehicles and mobile carts add vibration, shock, retention, and mounting demands to the storage system.
Cycle & Impact Durability
Repeated heavy use, slam events, end stops, and long service expectations should be represented in validation.
PROGRAM SUPPORT
From Concept to Production
KV supports OEM programs through a structured path from early application definition to production and ongoing lifecycle support. Each step builds on the decisions made before it.
PROCESS AT A GLANCE
Concept Development
We begin by reviewing application requirements, performance goals, space constraints, and use conditions to define the right path forward.
- Application requirements
- Performance goals
- Available space
- Use conditions
Application Engineering
Our engineering team evaluates load, travel, motion, mounting, materials, and integration requirements, then determines whether an existing platform, a modified platform, or a custom design is the right path.
- Load & travel
- Mounting & clearance
- Motion features
- Existing or custom platform
Prototyping & Testing
Concepts are refined through prototypes and representative application testing to confirm fit, function, durability, operating feel, and performance before production.
- Cycle life
- Load & deflection
- Travel & end stops
- Operating force
- Vibration & shock
- Corrosion & environment
Production Support
KV supports the transition into repeatable, scalable production with value engineering, manufacturability, quality, consistency, and supply continuity considered together.
- Value engineering
- Manufacturability
- Quality & consistency
- Supply continuity
Lifecycle Support
We continue supporting the program after launch, helping address future refinements, ongoing supply requirements, and long-term product performance.
- Program refinements
- Ongoing supply
- Long-term performance
- Platform continuity
PROJECT SPECIFICATIONS
Slide Configurator
Establish preliminary project specifications to organize your application requirements and determine the slide or rail characteristics that should be evaluated during design.
PROJECT SPECIFICATIONS
Build Your Project Specifications
Enter the project details KV would typically review when evaluating this application.
01
Project ContextMarket, application, program stage and production context.
02
Mechanical RequirementsLoad, travel, geometry and structural requirements.
03
Integration & MotionMounting, packaging, operating feel, retention and access.
04
Operating ConditionsCycle life, vibration, corrosion, temperature and environment.
APPLICATION ENGINEERING
Slide Configurator
START A CONVERSATION
Have a project in mind?
Bring KV into the planning process early and start your project with the right engineering support. Our team can help evaluate application requirements, identify the right motion or access solution, and define a clear path from concept through production.
