KV pocket door slides allow a cabinet door to open, pivot clear of the cabinet face, and retract into a side pocket. The correct system depends on the door application, door size and weight, slide series, hinge program, and any required components.
The door opens, pivots clear of the cabinet opening, and then retracts into the side pocket so it can be stored out of the way.
The door sits within the cabinet opening, flush with the cabinet face, when closed.
Inset configurations: 3/4" Inset Door, 3/4" Inset Free Swing Door, 1" Inset Thick Door, and 1-1/4" Inset Door. Hinge compatibility depends on door thickness and hinge program.
Allows the door to overlay the cabinet outer wall up to 7/16".
The Full Overlay Hinge Kit provides a 3/4" overlay with a 3/4"-thick door. The overlay decreases as door thickness increases.
The Full Overlay Hinge Kit is part of the 4x4 system and uses the 8091 slide. See Step 5 for door-thickness and pocket-width details.
Partition walls:
• Optional for Inset and Partial Overlay door applications — slides attach to the cabinet outer wall.
• Required for 3/4" Full Overlay door applications — slides attach to the partition wall.
Maximum door weight: 30 lb
Use the appropriate 8070 / 8071 / 8072 or 8080 / 8081 / 8082 configuration.
Maximum door weight: 75 lb

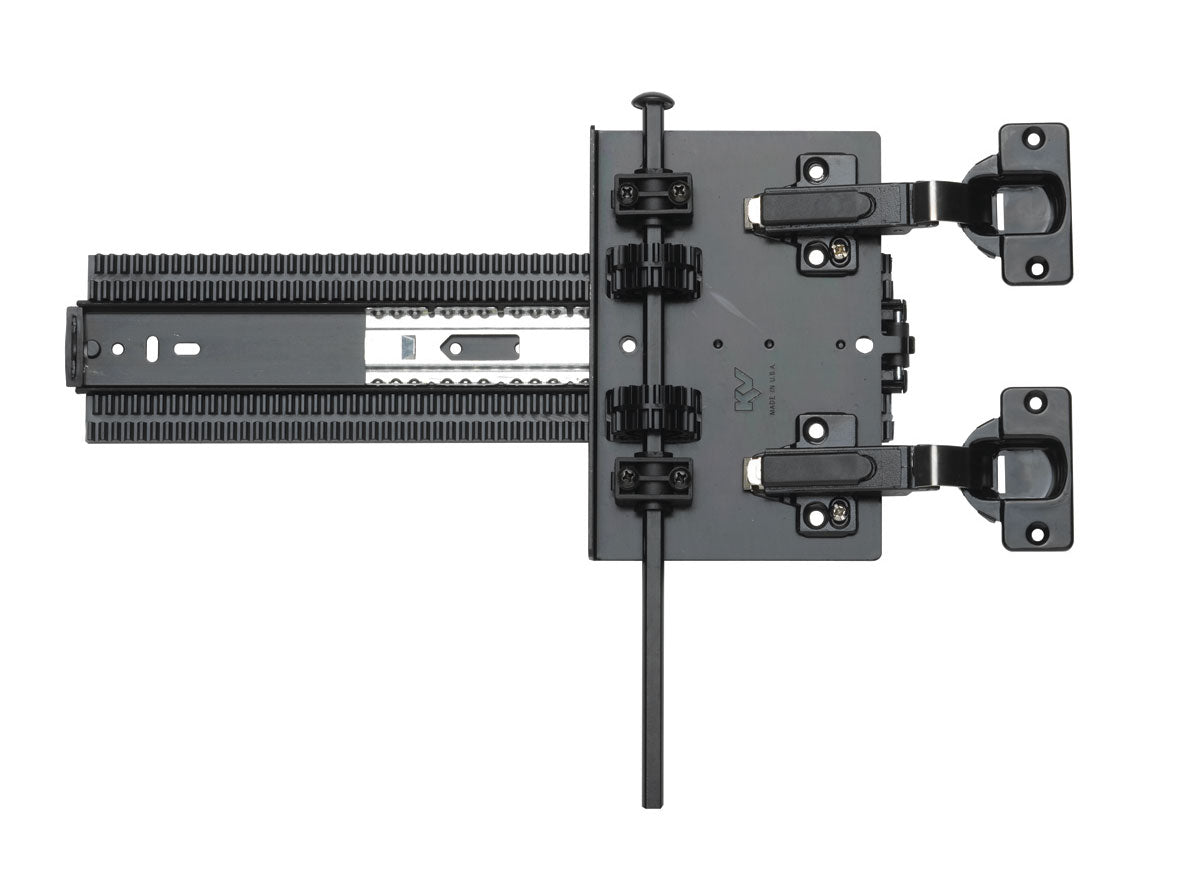

Use the 8091 or 8092 rack-and-pinion system when the door exceeds 42" H, 24" W, or 30 lb.
KV hinge programs: KV Grass and KV Salice refer to specific Grass and Salice hinge configurations selected for use with KV pocket-door slides. Available hinge kits vary by slide series, application, door thickness, closing action, and finish.
Hinge Program Compatibility:
8091 pairs with select KV Salice hinges.
8092 pairs with select KV Grass hinges.
8091 Full Overlay Hinge Kit pairs with select KV Grass and KV Salice hinges.
Please note: Hinge compatibility varies by slide series, application, and configuration. KV Grass and KV Salice hinge components are not universally interchangeable. Refer to the hinge compatibility chart to identify the appropriate hinge kit for each application.
| Slide Series | Hinge Program | Selection Guidance |
|---|---|---|

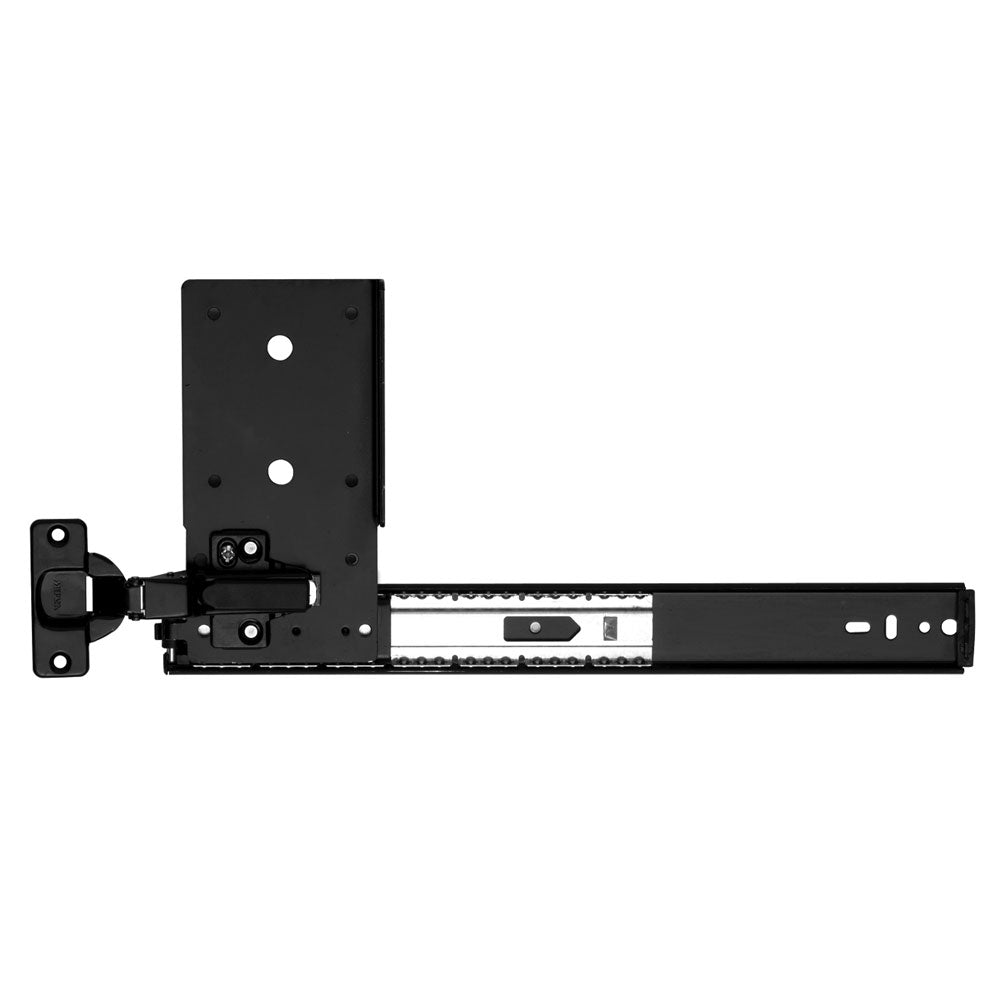

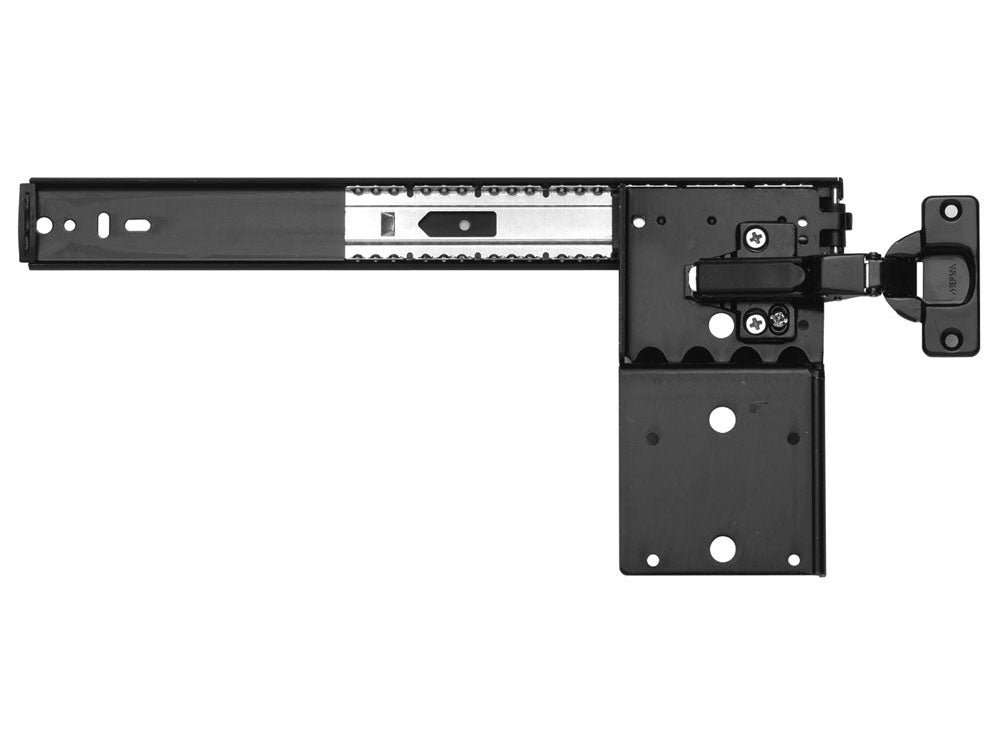

| 8070 / 8080 | Included Inset Hinge | Inset hinge included. |

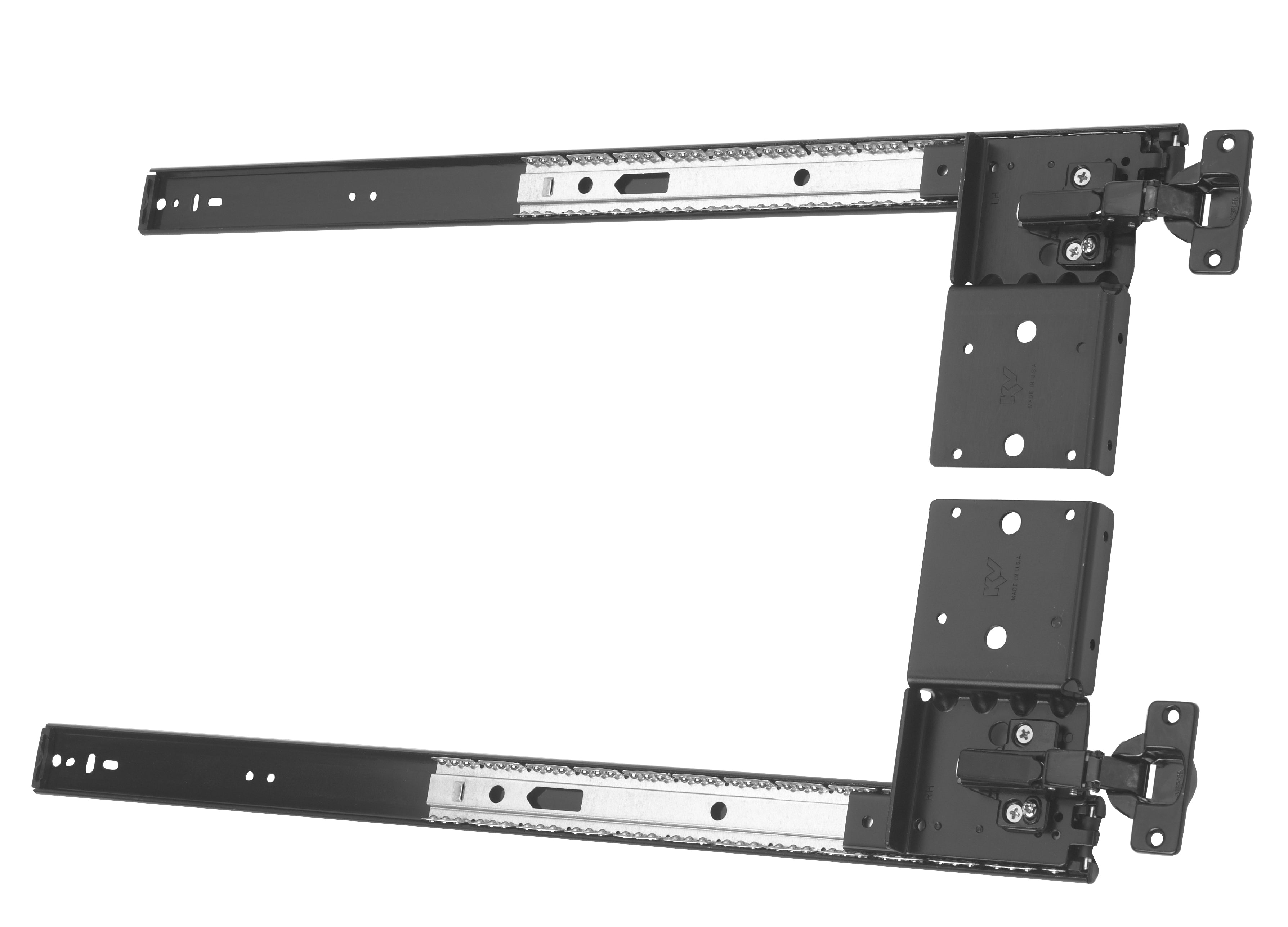

| 8071 / 8081 | KV Salice | Hinge and baseplate not included; select from KV Salice hinge program. |
| 8072 / 8082 | KV Grass | Hinge baseplate included; select from KV Grass hinge program. |
| 8091 | KV Salice | Hinge and baseplate not included; select from KV Salice hinge program. The 8091 Full Overlay Hinge Kit pairs with select KV Grass and KV Salice hinges. |
| 8092 | KV Grass | Hinge baseplate included; select from KV Grass hinge program. |
Select the appropriate hinge kit for 8072 / 8082 / 8092. The 8070 / 8080 3/4" Inset Door configuration includes an inset hinge.
| Hinge Kit | Finish | Hinge Cup Size | Door Thickness | Application |
|---|---|---|---|---|
| 8080 HKEZS | Nickel | 35 mm | 3/4" | Inset |
| 8080 HKEZL | Nickel | 40 mm | 3/4" | Partial Overlay |
| 8080 HKEZF | Nickel | 35 mm | 3/4" | Inset - Free Swing |
| 8086 HKEZX | Nickel | 40 mm | 1-1/4" | Inset - Extra Thick Door |
| 8080 HKEZSEB | Ebony Black (EB) | 35 mm | 3/4" | Inset |
| 8080 HKEZLEB | Ebony Black (EB) | 40 mm | 3/4" | Partial Overlay |
| 8085 HKEZTEB | Ebony Black (EB) | 40 mm | 1" | Inset - Thick Door |
| 8086 HKEZXEB | Ebony Black (EB) | 40 mm | 1-1/4" | Inset - Extra Thick Door |
Select the appropriate hinge kit for 8071 / 8081 / 8091. Soft-Close options are listed separately from Self-Close and Free-Swing hinge options.
| Hinge Kit | Closing / Type | Finish | Hinge Cup Size | Door Thickness | Application |
|---|---|---|---|---|---|
| 8080 HKS SAL | Self-Close | Nickel | 35 mm | 3/4" | Inset |
| 8080 HKF SAL | Free Swing | Nickel | 35 mm | 3/4" | Inset - Free Swing |
| 8080 HKL SAL | Self-Close | Nickel | 40 mm | 3/4" | Partial Overlay |
| 8086 HKX SAL | Self-Close | Nickel | 40 mm | 1-1/4" | Inset - Thick Door |
| 8080 HKS SAL EB | Self-Close | Ebony Black (EB) | 35 mm | 3/4" | Inset |
| 8080 HKL SAL EB | Self-Close | Ebony Black (EB) | 40 mm | 3/4" | Partial Overlay |
| 8086 HKX SAL EB | Self-Close | Ebony Black (EB) | 40 mm | 1-1/4" | Inset - Thick Door |
| 8080 HKS SAL SC | Soft-Close | Nickel | 35 mm | 3/4" | Inset |
| 8080 HKL SAL SC | Soft-Close | Nickel | 40 mm | 3/4" | Partial Overlay |
| 8086 HKX SAL SC | Soft-Close | Nickel | 40 mm | 1-1/4" | Inset - Thick Door |
| 8080HKSSAL TISC | Soft-Close | Titanium (TI) | 35 mm | 3/4" | Inset |
| 8080HKLSAL TISC | Soft-Close | Titanium (TI) | 40 mm | 3/4" | Partial Overlay |
| 8086HKXSAL TISC | Soft-Close | Titanium (TI) | 40 mm | 1-1/4" | Inset - Thick Door |
Finish availability: Finish availability varies by hinge kit and application.
| Slide Series | Hinges per Slide | Slides per Door Panel |
Total Hinges per Door Panel |
|---|---|---|---|
| 8070 / 8071 / 8072 / 8080 / 8081 / 8082 | 1 | 2 | 2 |
| 8091 / 8092 | 2 | 2 | 4 |
| Full Overlay Kit | Hinge Manufacturer | Closing Action |
|---|---|---|
| 8091SFULL34M | Grass | Self-Close |
| 8091SFULL34S | Salice | Self-Close |
| 8091SFULL34S SC | Salice | Soft-Close |
The 3/4" overlay applies to a 3/4"-thick door. As door thickness increases, the amount of overlay decreases and the required pocket width increases.
| Door Thickness | Amount of Overlay | Pocket Width |
|---|---|---|
| 3/4" | 3/4" | 1-3/4" |
| 13/16" | 11/16" | 1-13/16" |
| 7/8" | 5/8" | 1-7/8" |
| 15/16" | 9/16" | 1-15/16" |
| 1" | 1/2" | 2" |
| 1-1/16" | 7/16" | 2-1/16" |
| 1-1/8" | 3/8" | 2-1/8" |
| 1-3/16" | 5/16" | 2-3/16" |
| 1-1/4" | 1/4" | 2-1/4" |
Installation requirements: Mount the Full Overlay Hinge Kit and 8091 slides to a partition wall. A pinion shaft and 40 mm hinge bore are also required.
The pinion shaft is a required operating component of the 4x4 rack-and-pinion system.
KV offers 36", 48", and 72" shaft lengths. Cabinetmakers may cut the shaft down to the required application length.
| Shaft Length | 10-Pack | 2-Pack |
|---|---|---|
| 36" | 8090B EB 36 | 8092SB EB 36 |
| 48" | 8090B EB 48 | 8092SB EB 48 |
| 72" | 8090B EB 72 | 8092SB EB 72 |
Pinion shaft sizing: Select shaft length from the final cabinet and application dimensions, not door height alone. The 4x4 system may be used on a shorter door, and the shaft can be cut to the required length.
Cabinet depth / slide length: Allow 4.0" of additional interior cabinet depth beyond the selected slide length to accommodate the large metal plate on the slide. If cabinet depth equals the slide length, the door panel may remain approximately 4.0" proud of the cabinet face.
Door pull: A projecting pull, such as a loop pull or knob, can prevent the door from retracting fully. A recessed or flush pull allows the door to retract fully into the pocket.
This optional accessory is used for raised-panel door applications when the cassette roller configuration is required.
Use the interactive selector below to enter the door application, height, width, weight, and hinge preference. It will narrow the applicable slide system and identify required 4x4 components when applicable. This selector is intended for vertical pocket-door applications.
Make your selections below. Additional questions will appear as they apply to the selected door configuration.
Up to 42" H x 24" W and 30 lb | 4x4 maximum: 72" H x 26" W and 75 lb
Recommended configuration
A pinion shaft is a required operating component for 8091 / 8092 rack-and-pinion systems. KV offers 36", 48" and 72" shaft lengths. Because cabinetmakers may use the 4x4 system on shorter doors and may cut the shaft down to the required length, this selector does not automatically select a shaft length.
