KVSHB 800 Series Master 110° Concealed Hinge
The KVSHB 800 Series Master concealed hinge combines a 110° opening angle with six-way adjustment for precise cabinet-door alignment. Full overlay, half overlay and inset configurations support a range of cabinet designs, with soft close, self close and free swing options available by variant. Choose the mounting style for the installation and pair the hinge with the appropriate mounting plate for face frame or frameless cabinetry.
- 110° opening angle
- Six-way height, side and depth adjustment
- 35mm hinge cup and 45mm drilling pattern

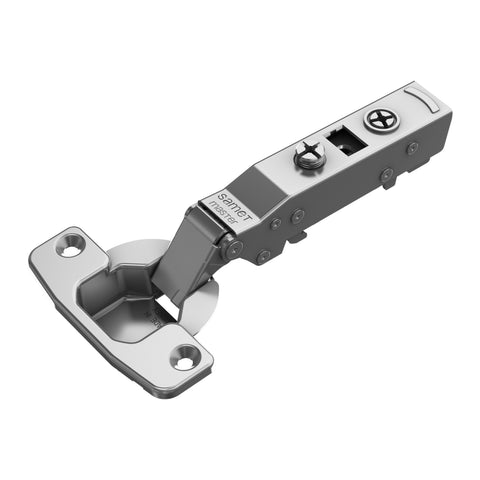

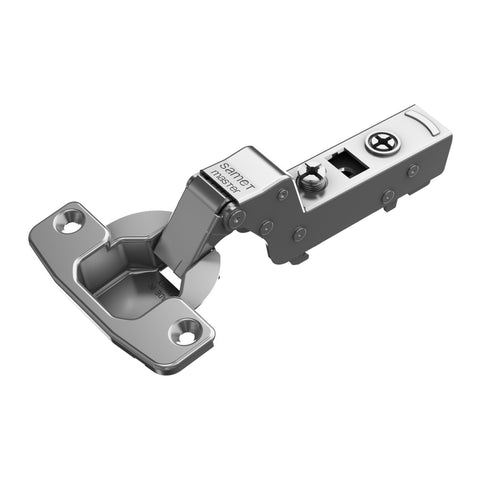

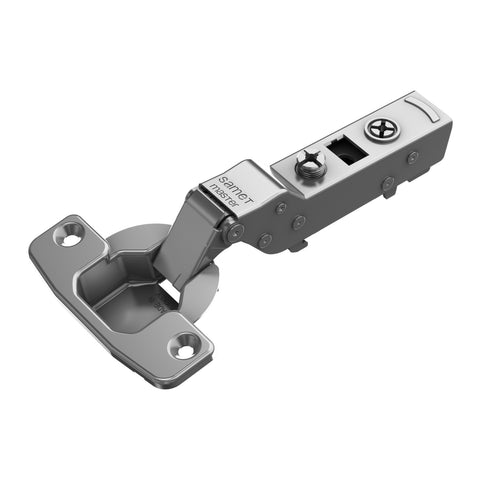

- Full overlay, half overlay and inset configurations
- Woodscrew, 8mm dowel and toolless mounting choices by variant
- For 16mm to 26mm doors
Specs
| Closing Type | Soft-Close, Self-Close, Free Swing |
| Overlay | Full Overlay, Half Overlay, Inset |
| Mounting Type | Woodscrew, 8mm Dowel, Toolless |
| Family | KVSHB 800 Series Master |
| Brand | KV Powered by Samet |
