KV GSlide®

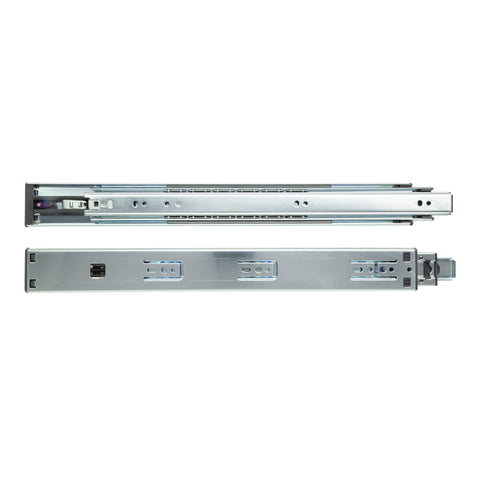

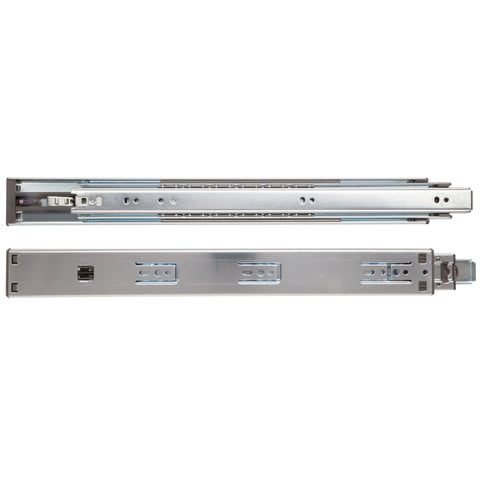

GS4260 Push-To-Open Drawer Slide
The GS4260 GSlide® drawer slide opens with a light push, allowing access without pulling on a handle. Its push-open mechanism holds the drawer or tray closed until activated. This 100 lb class side-mount slide uses telescopic ball-bearing movement and includes a lever disconnect, non-handed design and 32 mm hole pattern. Recommended for drawers up to 24" wide. Zinc finish.
Specs
| Sizes | 10", 12", 14", 16", 18", 20", 22", 24", 26", 28" |
| Family | KV GSlide® GS4200 Series Medium-Duty Drawer Slides |
| Brand | KV GSlide® |
| Slide Class | Medium-duty |
| Load Class | 100 lb |
| Slide Height | 1.79" (45.5mm) |
| Open/Close Features | Push-to-Open |
| Disconnect | Lever disconnect |
| Bearing Type | Ball-Bearing |
| Load Capacity | 100 lb |
| Features |
|
