KV GSlide®

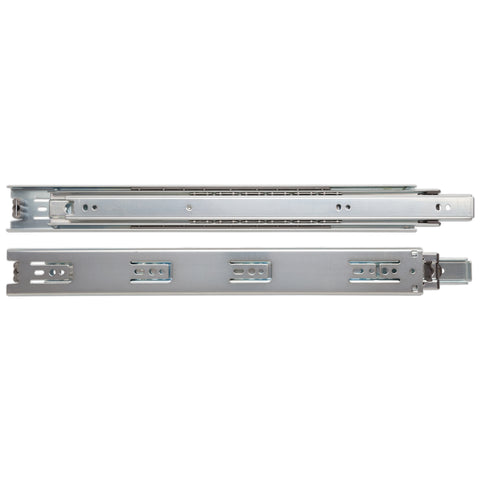

GS4205 Over Travel Drawer Slide
The GS4205 GSlide® drawer slide provides 1" of over travel for added access beyond the cabinet opening. This 90 lb class side-mount slide features telescopic ball-bearing movement, a hold-in detent and lever disconnect for drawer removal. A non-handed design and 32 mm hole pattern support installation. Recommended for drawers up to 24" wide. Zinc finish.
Specs
| Sizes | 10", 12", 14", 16", 18", 20", 22", 24", 26", 28" |
| Family | KV GSlide® GS4200 Series Medium-Duty Drawer Slides |
| Brand | KV GSlide® |
| Slide Class | Medium-duty |
| Load Class | 90 lb |
| Slide Height | 1.79" (45.5mm) |
| Open/Close Features | Hold-in Detent |
| Disconnect | Lever disconnect |
| Bearing Type | Ball-Bearing |
| Load Capacity | 90 lb |
| Features |
|
