KV DuriSlide™
Pack Size:

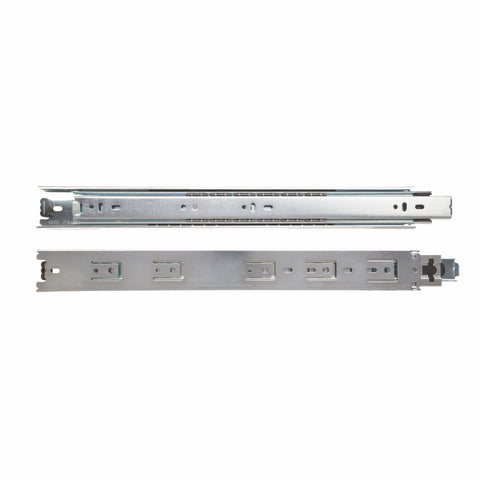

DUR45 DuriSlide™ 4500 Ball-Bearing Drawer Slide
The DUR45 DuriSlide™ 4500 is a 100 lb class medium-duty, side-mount drawer slide with full-extension ball-bearing movement. Its 32 mm and traditional hole patterns support flexible installation, while a lever disconnect allows easy drawer removal. The non-handed design can be used on either side of the drawer. Recommended for drawers up to 24" wide. Zinc finish.
Bulk Pack: 10 pairs per carton without screws. Quantity Pack: 20 cabinet members per carton and 100 drawer members per carton. Quantity Pack is available by full-container drop shipment; full-pallet quantities vary by size.
Specs
| Size | 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm |
| Pack Type | Bulk Pack, Quantity Pack |
| Family | DuriSlide™ 4500 Series Medium-Duty Drawer Slides |
| Brand | KV DuriSlide™ |
| Slide Class | Medium-Duty |
| Slide Type | Side-Mount |
| Load Class | 100 lb |
| Mounting | Side |
| Slide Width | 0.488"–0.500" (12.4–12.7mm) |
| Slide Clearance | 0.50" +0.03"/-0" per side |
| Slide Height | 1.77" (45mm) |
| Slide Extension | Full Extension |
| Disconnect | Lever disconnect |
| Bearing Type | Ball-Bearing |
| Load Capacity | 100 lb |
| Design | Non-handed |
| Features |
|
