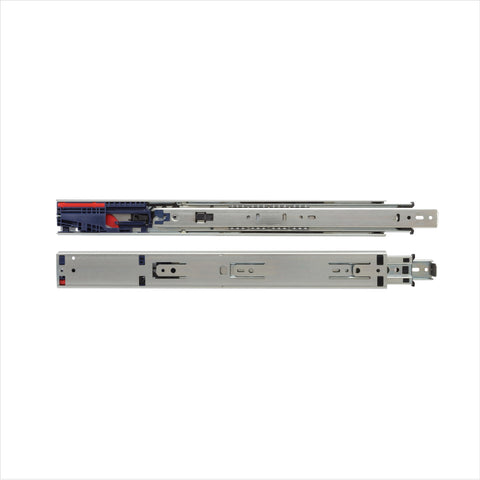

8455FM Over Travel Soft-Close Force Management™ Drawer Slide

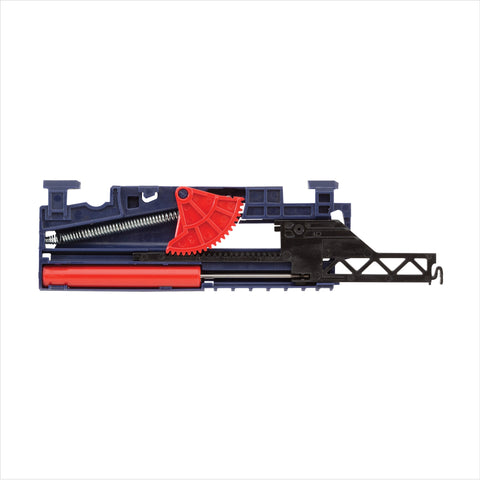

90 lb class drawer slide with best-in-class soft-close module features patented Force Management Technology that delivers the lowest opening pull force while ensuring effective dampening closure that eliminates drawer slamming. 1" over-travel extension drawer slide has a traditional and 32mm hole patterns that support industry standards. Features an unhanded design with lever disconnect for easy drawer removal. Recommended for drawers up to 24" wide.
Specs
| Sizes | 16", 18", 20", 22", 24", 26", 28" |
| Pack Type | Bulk Pack, Poly Pack |
| Family | 8400 Series Medium-Duty Drawer Slides |
| Brand | KV® |
| Slide Class | Medium-Duty |
| Load Class | 90 lb |
| Slide Width | .50"/12.7mm |
| Slide Height | 1.79"/45.5mm |
| Open Close Features | Soft-Close |
| Base Material | Steel |
| Disconnect | Lever Release |
| Bearing Type | Steel Ball Bearing |
| Load Capacity | 90 lb |
| Product Features |
|
