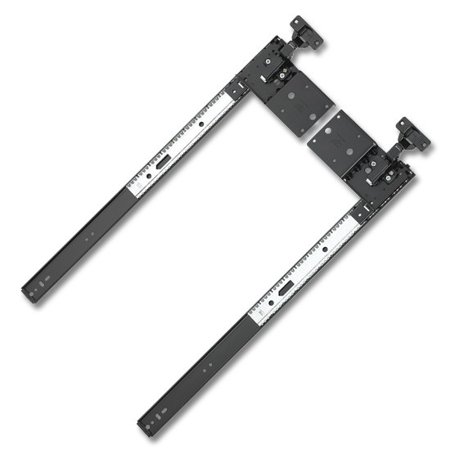

8070 3/4-Extension Self-Close Pivot Door Slide with Inset Hinge
The Knape and Vogt 8070, 8071, and 8072 pivot door slides are precision-engineered 3/4-extension solutions designed to support cabinet doors with smooth operation and reliable performance. While all three share the same core pivot action, they differ in how the hinge and mounting hardware are configured — giving installers flexibility based on project needs.
The 8070 Pivot Door Slide includes a self-close mechanism with an integrated 35 mm inset door hinge and baseplate, providing a complete, ready-to-install solution. This configuration is ideal for standard cabinetry where a built-in, self-closing hinge saves time and ensures consistent door motion.
The 8071 Pivot Door Slide offers the same reliable 3/4-extension slide action but is supplied without a hinge or baseplate. This model is perfect for applications where you prefer to use your own hinge hardware or when retrofitting into existing installations that already have hinge systems in place.
The 8072 Pivot Door Slide provides the 3/4-extension slide with an included hinge and baseplate, but without the self-close mechanism found on the 8070. This makes it a strong choice when hinge hardware integration is needed for alignment and support, but self-closing action isn’t required.
Specs
| Primary Size | 12" |
| Family | 8070/8071/8072 Series Pivot Door Slides |
| Brand | KV® |
| Slide Class | Pivot Door |
| Load Class | 30 lb |
| Open Close Features | Door Recess |
| Base Material | Steel |
| Disconnect | Hinge |
| Bearing Type | Steel Ball Bearing |
| Load Capacity | 30 lb |
| Product Features |
|
| Ecommerce | Inactive |
